PU sandiwch panel with 304 stainless steel in both sides
Changxue

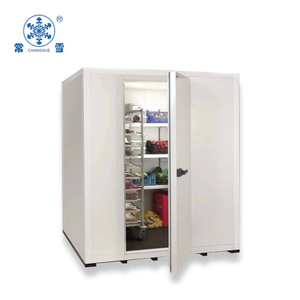

The CHANGXUE cold room includes chiller room, frozen room, quick-freezing room, quick-freezing tunnel and so on. These products are not only widely used in supermarkets, medicine, hotels, canteens, aquatic products, meat, vegetables, fruits and other industries, but also suitable for electronic, mechanical and chemical refrigeration testing industry.
7. Adjustable indoor temperature saves up to 30% electricity.
 Compressor unit Brand:Germany Bitzer and America Copeland compressor unit optional(Guarantee the authenticity of the compressor) Refrigerant:R22,R404a High quality, large cooling capacity, stable performance |
 Evaporator air cooler Model:DD,DJ,DL.DD series is for medium temperature; DJ series is for low temperature;DL series is for high temperature. Low cost, high cost performance Water flushing frost |

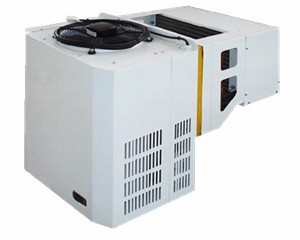

 Monoblock refrigeration unit Used for small cold room with temperature -5°C~5°C or - 15°C~-20°C Easy installation and compact structure: condensing unit and evaporator made in one single block |

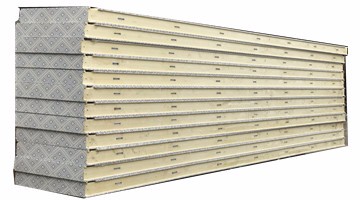

 PU insulated panel Thickness:50mm,75mm,100mm,120mm,150mm,180mm,200mm Surface material: color steel, 304 stainless steel Density:38-42kg/m3 Panel connection: cam lock connection Fireproof grade: B2 |

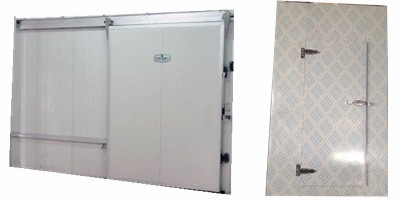

 Cold room door Type: Hinged door,sliding door, swing door Thickness:100mm and 150mm Electric heating wire for low temperature application, escape device for emergency |

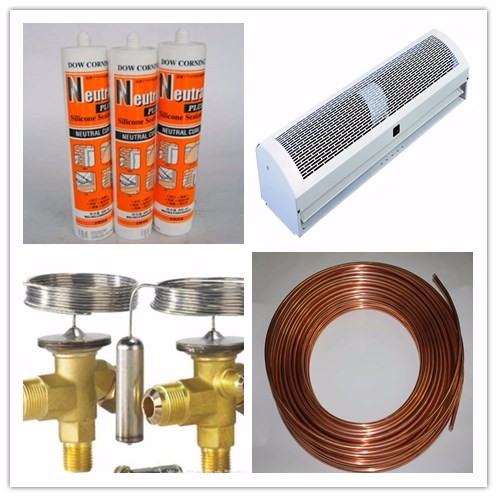

 Refrigeration fittings Sealant Air curtain Danfoss valve Copper pipe |
| Thickness of cold storage panel | Application temperature | |||
| 50mm | Temperature 5°C or above | |||
| 75mm | Temperature -5°C or above | |||
| 100mm | Temperature -15°C or above | |||
| 120mm | Temperature -25°C or above | |||
| 150mm | Temperature -35°C or above | |||
| 180mm | Temperature -40°C or above | |||
| 200mm | Temperature -45°C or above | |||
The CHANGXUE cold room includes chiller room, frozen room, quick-freezing room, quick-freezing tunnel and so on. These products are not only widely used in supermarkets, medicine, hotels, canteens, aquatic products, meat, vegetables, fruits and other industries, but also suitable for electronic, mechanical and chemical refrigeration testing industry.
7. Adjustable indoor temperature saves up to 30% electricity.
Compressor unit Brand:Germany Bitzer and America Copeland compressor unit optional(Guarantee the authenticity of the compressor) Refrigerant:R22,R404a High quality, large cooling capacity, stable performance |
Evaporator air cooler Model:DD,DJ,DL.DD series is for medium temperature; DJ series is for low temperature;DL series is for high temperature. Low cost, high cost performance Water flushing frost |
Monoblock refrigeration unit Used for small cold room with temperature -5°C~5°C or - 15°C~-20°C Easy installation and compact structure: condensing unit and evaporator made in one single block |
PU insulated panel Thickness:50mm,75mm,100mm,120mm,150mm,180mm,200mm Surface material: color steel, 304 stainless steel Density:38-42kg/m3 Panel connection: cam lock connection Fireproof grade: B2 |
Cold room door Type: Hinged door,sliding door, swing door Thickness:100mm and 150mm Electric heating wire for low temperature application, escape device for emergency |
Refrigeration fittings Sealant Air curtain Danfoss valve Copper pipe |
| Thickness of cold storage panel | Application temperature | |||
| 50mm | Temperature 5°C or above | |||
| 75mm | Temperature -5°C or above | |||
| 100mm | Temperature -15°C or above | |||
| 120mm | Temperature -25°C or above | |||
| 150mm | Temperature -35°C or above | |||
| 180mm | Temperature -40°C or above | |||
| 200mm | Temperature -45°C or above | |||
