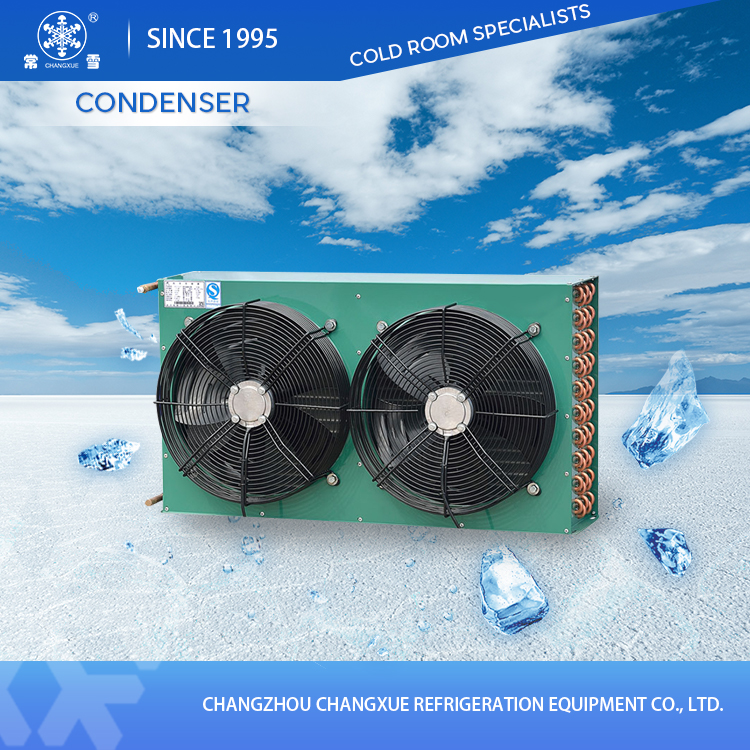

H Type Air Cooled Refrigeration Condenser For Cold Room

Quantity:
  • H Type

冷凝器首图

Evaporator Condenser


Main features of H-type air cooled Condenser:
1.Condensers’ shell is made of high quality steel plate with plastic spraying, corrosion resistance and beautiful appearance.
2.Different refrigerants like R22, R134a, R404a and R407c are workable.
3.The condensers are tested under air pressure 2.5MPaguarabteeing the products’ high gas tightness.
4.High efficiency heat exchange coil is used.
5.The copper tube and fin are closely combined, and the heat transfer effect is good.

H-type air cooled Condenser Advantage:
1.Water resource is no needed and The operation cost is low.
2.Easy to install and use
3.It will not pollute the environment.
4.It is suitable for areas where water shortage is serious or water supply is difficult.

H-type air cooled Condenser Disadvantages:
1.High input cost
2.The higher condensation temperature reduces the operation efficiency of refrigeration units.
3.It is not suitable for areas with dirty air and dusty climate.


Condenser Detail:

Axial fan

Material: Aluminum casting rotor, metal blade and guard grill
Protection Class: IP54
Voltage: 380V/50Hz/3 phase or customized

Fin

It is equipped with high efficiency coils made from special profile aluminum fins and inner-grooved copper tube.
The fin space in the air cooler will change according to different temperature. In general, fin space:4.5mm,6mm and 9mm.

Heat exchange

We optimize heat exchanger size, row number, circuit design and match the most suitable air volume to make refrigerant fully heat exchange. At least 15% heat transfer efficiency increased.
